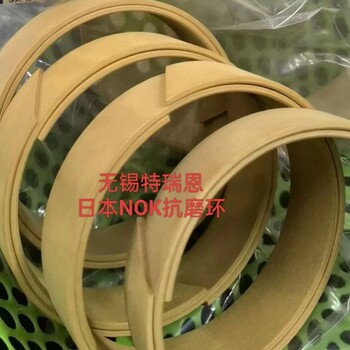

NOK抗磨環WR密封件咨詢無錫特瑞恩機電設備有限公司銷售NOK抗磨環WR庫存
名義號 密封件公稱尺寸 腔體尺寸 NOK零件號
d D h t φd φD H
WR 18 14 18 8 2 14 18 8 GW0241P0
19.2 15.2 19.2 15.2 19.2 GW0242P0
20 16 20 16 20 GW0243P0
22 18 22 18 22 GW0244P0
24 20 24 20 24 GW0245P0
25 21 25 21 25 GW0246P0
26 22 26 22 26 GW0247P0
28 24 28 24 28 GW0248P0
30 26 30 26 30 GW0249P0
31 27 31 27 31 GW0250P0
31.5 27.5 31.5 27.5 31.5 GW0251P0
33 29 33 10 29 33 10 GW0252P0
35 31 35 31 35 GW0253P0
35.4 31.4 35.4 31.4 35.4 GW0254P0
35.5 31.5 35.5 31.5 35.5 GW0255P0
38 34 38 34 38 GW0256P0
40 36 40 36 40 GW0257P0
41 37 41 15 37 41 15 GW0258P0
43 38 43 2.5 38 43 GW0259P0
44.5 39.5 44.5 39.5 44.5 GW0260P0
45 40 45 40 45 GW0261P0
50 45 50 45 50 GW0006P1
51.5 46.5 51.5 46.5 51.5 GW0263P0
55 50 55 50 55 GW0264P0
56 51 56 51 56 GW0010P1
60 55 60 55 60 GW0012P1
61 56 61 56 61 GW0267P0
63 58 63 58 63 GW0268P0
65 60 65 20 60 65 20 GW0269P0
66 61 66 61 66 GW0270P0
69 64 69 64 69 GW0271P0
70 65 70 65 70 GW0019P1
71 66 71 66 71 GW0192P1
75 70 75 70 75 GW0021P1
76 71 76 71 76 GW0746P0
80 75 80 75 80 GW0027P1
85 79 85 25 3 79 85 25 GW0030P1
90 84 90 84 90 GW0036P1
95 89 95 89 95 GW0167P1
100 94 100 94 100 GW0041P3
105 99 105 99 105 GW0278P0
110 104 110 104 110 GW0051P1
112 106 112 30 106 112 30 GW0280P0
115 109 115 109 115 GW0055P2
120 114 120 114 120 GW0059P1
125 119 125 119 125 GW0283P0
130 123 130 3.5 123 130 GW0065P1
132 125 132 35 125 132 35 GW0285P0
140 133 140 133 140 GW0075P1
150 143 150 143 150 GW0086P1
157 150 157 40 150 157 40 GW0287P0
160 153 160 153 160 GW0093P2
165 157 165 45 4 157 165 45 GW0289P0
170 162 170 162 170 GW0290P0
180 172 180 172 180 GW0104P1
185 177 185 177 185 GW0292P0
190 182 190 182 190 GW0293P0
200 192 200 192 200 GW0109P1
205 197 205 50 197 205 50 GW0181P1※
210 202 210 202 210 GW0296P0
220 212 220 212 220 GW0297P0
224 216 224 216 224 GW0298P0
225 217 225 217 225 GW0115P1
230 222 230 55 222 230 55 GW0300P0
240 232 240 232 240 GW0301P0
250 242 250 242 250 GW0122P1
260 252 260 60 252 260 60 GW0303P0
270 262 270 262 270 GW0304P0
275 267 275 267 275 GW0305P0
290 282 290 70 282 290 70 GW0307P0
297 289 297 289 297 GW0308P0
300 292 300 292 300 GW0309P0
312 304 312 304 312 GW0310P0
332 324 332 324 332 GW0311P0


WR型 (SPG型、SPGW型用)
名義號 密封件公稱尺寸 腔體尺寸 NOK
零件號
d D h t φd φD H
30W 26 30 8 2 26 30 8 GW0249P0
31.5W 27.5 31.5 27.5 31.5 GW0251P0
32W 28 32 28 32 GW0314P0
35W 31 35 31 35 GW0315P0
35.5W 31.5 35.5 31.5 35.5 GW0316P0
40W 36 40 36 40 GW0317P0
45W 40 45 2.5 40 45 GW0318P0
50W 45 50 45 50 GW0279P0
55W 50 55 50 55 GW0319P0
56W 51 56 51 56 GW0320P0
60W 55 60 55 60 GW0321P0
63W 58 63 58 63 GW0322P0
65W 60 65 10 60 65 10 GW0323P0※
69W 64 69 64 69 GW0324P0
70W 65 70 65 70 GW0018P1
71W 66 71 66 71 GW0326P0
75W 70 75 70 75 GW0327P0
80W 75 80 75 80 GW0025P1
85W 79 85 15 3 79 85 15 GW0329P0
90W 84 90 84 90 GW0330P0
95W 89 95 89 95 GW0331P0
100W 94 100 94 100 GW0332P0
108W 102 108 102 108 GW0333P0
110W 104 110 104 110 GW0334P0
112W 106 112 106 112 GW0335P0
120W 114 120 114 120 GW0336P0
125W 119 125 119 125 GW0337P0
130W 123 130 3.5 123 130 GW0338P0
140W 133 140 20 133 140 20 GW0339P0
150W 143 150 143 150 GW0340P0
160W 153 160 153 160 GW0341P0
170W 162 170 25 4 162 170 25 GW0342P0
180W 172 180 172 180 GW0343P0
190W 182 190 182 190 GW0344P0
200W 192 200 192 200 GW0345P0
204W 196 204 196 204 GW0346P0
210W 202 210 202 210 GW0347P0
224W 216 224 216 224 GW0348P0
225W 217 225 217 225 GW0349P0
230W 222 230 30 222 230 30 GW0350P0
240W 232 240 232 240 GW0351P0
250W 242 250 242 250 GW0352P0
